Trace data can be saved as a *.CSV file (comma separated values). The *.CSV file contains comment and trace data lines. Comments start from the «!» symbol.
Before saving the *.CSV file, set the trace type, value delimiter type, and other parameters in the Save Trace Data submenu (See the table below). Then, click the Save... button to save the values to the file.
Parameter |
Definition |
|---|---|
Scope |
Type of trace to be saved: •Active Trace. •All Traces of Chan — all traces of the active channel. |
Format |
Data save format: •Displayed — the format in which the trace is set (See Format Setting). •Real-Imag — real and imaginary parts. •db-Angle — logarithmic magnitude in dB and phase in degrees. |
Comment |
Enable/disable the entry in the comment file. The comment contains 3 lines: 1.Model, serial number, software version. 2.Save date (in the dd.mm.yyyy hh:mm:ss format). 3.The name of the saved parameters and their dimensionality. |
Stimulus |
Enable/disable recording to the file frequency at measurement point. |
Decimal Separator |
The type of delimiters between stored values, as well as the type of decimal separator: •Local — delimiters defined in regional settings are used. •Point — decimal separator is point, value separator is comma. |
The trace data is saved to *.CSV in the following format:
! Comment |
||
F[0], |
Data1, |
Data2 |
F[1], |
Data1, |
Data2 |
. . . |
|
|
F[N], |
Data1, |
Data2 |
F[n] — frequency at measurement point n.
Data1 — trace response in rectangular format, real part in Smith chart and polar format.
Data2 — zero in rectangular format, imaginary part in Smith chart and polar format.
Editing saving parameters
|

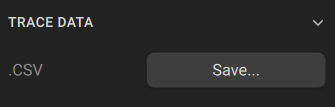

To open save trace submenu , use: Save/Recall > Trace Data > Save... |
|

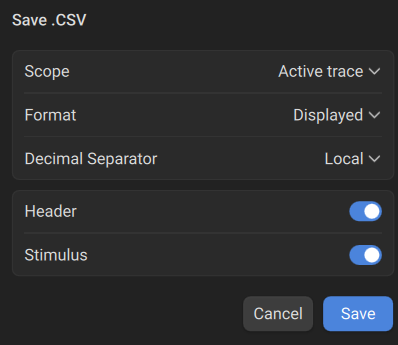

To select the type of trace, use the Scope dropdown. Then select the required type: •Active Trace •All Traces of Channel |
|
To select the format for saving data, use the Format dropdown. Then select the required format: •Displayed •Real-Imag •db-Angle |
|
To enable/disable writing to a file frequency at measurement point, use the Stimulus toggle. |
|
To select the type of separators, use the Decimal Separator dropdown. Then select the required format: •Local •Point |
|
|
CSV File Saving
|
To save the .CSV file, use the Save button at the bottom right of the Trace Data .CSV Save popup. |
|
|
