The Analyzer state, calibration and measured data can be saved on the hard disk to an Analyzer state file and later uploaded back into the Analyzer software. The following four types of saving are available:
State |
The Analyzer settings. |
State & Cal |
The Analyzer settings and the table of calibration coefficients. |
State & Trace |
The Analyzer settings and data traces1. |
All |
The Analyzer settings, table of calibration coefficients, and data traces and memory1. |
State & Cal & Mem |
The Analyzer settings, table of calibration coefficients and memory. |
1 When recalling the state with saved data traces, the trigger mode will be automatically set to «Hold» so that the recalled traces are not erased by currently measured data. |
|
The Analyzer settings that are saved into the Analyzer state file are parameters that can be set in the following sub-levels of the softkey bar:
•All the parameters in the Stimulus
•All the parameters in the Measurement
•All the parameters in the Format
•All the parameters in the Scale
•All the parameters in the Average
•All the parameters in the Display except for Properties
•All the parameters of the Markers
•All the parameters of the Analysis
•Ref Source and System Correction parameters in the System
To save and recall a state file, ten softkeys labeled State01, ... State10 can be used. Each of the softkeys correspond to a *.STA file with the same name.
To have the Analyzer state automatically recalled after each start of the instrument use the Autorecall.sta file. Use the Autorecall softkey to save the corresponding file and thus enable this function.
To disable the automatic recall of the Analyzer state, delete the Autorecall.sta file using the specific softkey.
The files can be saved and recalled with arbitrary names. To save, use the File... softkey, which will open the Save as dialog box.
Analyzer State Saving
|

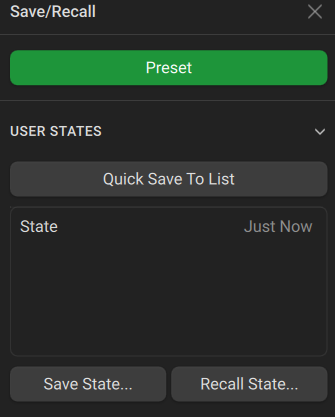

To save the state, use the following softkeys: Save/Recall > Save State |
|
|
Analyzer State Recalling
|
To recall the state from an Analyzer state file: Save/Recall > Recall State |
|
|
