For rectangular format, the following parameters can be set (See figure below):
•scale division
•reference level value
•reference level position
•number of scale divisions

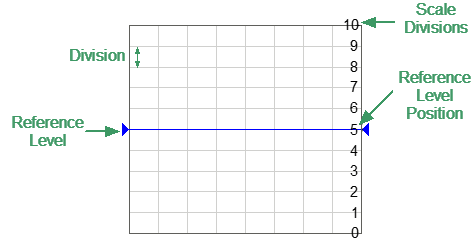

Rectangular scale
The scale of each trace can be set independently. The trace to which the function is applied must be preselected as active (See Selection of Active Trace/Channel).
|
To set the scale of a trace: Scale > Scale |
|
To set the reference level: Scale > Ref Value |
|
To set the position of the reference level: Scale > Ref Position |
|
To set the number of trace scale divisions: Scale > Divisions Note: The number of scale divisions affects all traces of the channel. |
|
|
note |
The trace scale, value of the reference level, and reference level position can be set using the mouse (See Quick Setting Using a Mouse). |
