 Network Analyzers using S2VNA software

Unknown Thru Addition method is used to convert the one-port calibrations to the full two-port calibration.  Unknown Thru Addition method is used mainly in DUT connecting with connectors of various types. In this case, one predefined calibration kit cannot be used for calibration of both ports, as in the Unknown Thru calibration method.

The difference between this method and Unknown Thru calibration is that the calibration is performed in two steps:

One-port calibration of each port must be performed in advance using a mechanical calibration kit (See Full One-Port Calibration) or ACM. Since a suitable calibration kit can be selected for each one-port calibration, the test ports can be of different types, up to a combination of coaxial type and waveguide type ports.

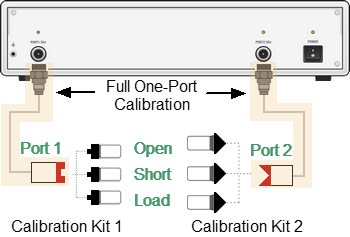

Unknown Thru Addition 1

One-port calibrations before the Thru Addition method

The Unknown Thru Addition function measures UNKNOWN THRU and completes the two-port calibration.

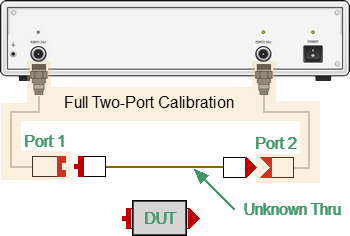

Unknown Thru Addition 2

Unknown Thru Addition method

To add an UNKNOWN THRU, proceed as follows:

First, select in the software the calibration kit used for the port to be calibrated. Perform full one-port calibration for each port. For more details about this procedure, see Full One-port Calibration.

Go to the Unknown Thru Addition submenu. Set the delay (length) of UNKNOWN THRU or leave it at zero value for automatic detection. If using length instead of delay, also enter permittivity. If using waveguide THRU, also set the Cutoff Frequency.

Connect the ports directly using an appropriate UNKNOWN THRU and perform the measurements. Eventually, the full two-port calibration coefficients will be computed.


note

The Unknown Thru Addition function is not accessible if the one-port calibration is interpolated or extrapolated. The status of the one-port calibration must be [Cor], not [С?] or [C!].


Unknown Thru Addition

To open the Unknown Thru Addition submenu, use the following softkeys:

Calibration > Calibrate > Unknown Thru Addition





Thru Media TEM

Select the THRU media: Coax or Waveguide, using Thru Media softkey.



Delay Unit Seconds

Select the desired measurement units for Delay (Length): Seconds or Meters, using Delay Unit softkey.



Permittivity 1.00649

When the measurement units Meters are selected, enter the Permittivity value, using Permittivity softkey.



Cutoff Frequency 1 GHz

When the adapter media Waveguide is selected, enter the Cutoff Frequency value, using Cutoff Frequency softkey.



Complete 2Port Cal

To complete the the full two-port calibration, click Complete 2-Port Calibration softkey.
