 Network Analyzers using S2VNA software

System Settings > User Interface Setting

Сolor traces, markers, background, and grid

Scroll Contact Us Home Prev Top Next More

The color of data and memory traces, markers, the background, and the grid can be changed if necessary.

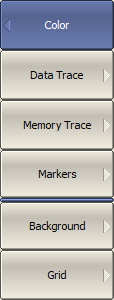

Set Color Menu

To change the color by categories of displayed items, use the following softkeys:

Display > Properties > Colors

Select displayed items to customize:

Data Trace

Memory Trace

Markers

Background

Grid

Color Memory Trace

Custom Color

Color Options3

The color setting for the different displayed items is identical. For example, consider changing the color of an active memory trace.

To change the color of the active memory trace, use the following softkeys:

Display > Properties > Colors > Memory Trace

To turn on Сustom Сolor, use the following softkeys:

Display > Properties > Colors > Memory Trace > Custom Color [ON | OFF]

Then select the rate (from 0 to 255) of color components, use the following softkeys: Red, Green, Blue.

The changes made to the color of the active memory trace will affect all the traces with the same number in other channels.

Select Color

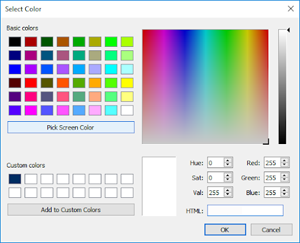

Alternatively, press the Select Color... softkey and go to the Microsoft Windows color palette. Select  color and click OK.

Select Color Menu
