 Network Analyzers using S2VNA software

System Settings

Security Level

Scroll Contact Us Home Prev Top Next More

The software provides three levels of security:

None

Low

High

The frequency indication is disabled when the security level is Low or High.

When the security level is High, it is only possible to turn on the frequency indication after a complete reset of the Analyzer or by loading the analyzer state file, which also leads to a complete reset of the previous Analyzer state.

Security Lelev off

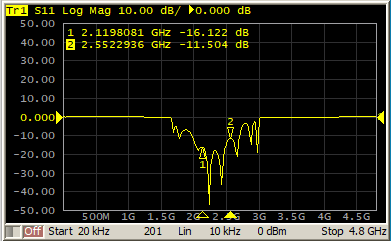

Security Level OFF

Security Lelev on

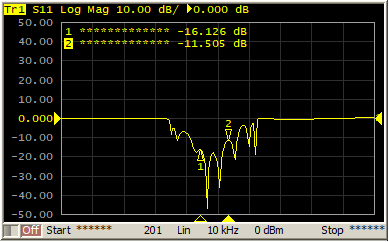

Security Level ON

Security Level key

Select the level of security in the menu:

System > Misc Setup > Security Level > [None | Low | High]



Rev.:  24.2
