SC0402, SC0602, and SC0902

Scroll Contact Us Home Prev Top Next More

Select Series SC models deliver lab grade performance, with all the features engineers have come to expect included standard in software.

The front view of the Analyzers is represented in the figures below.

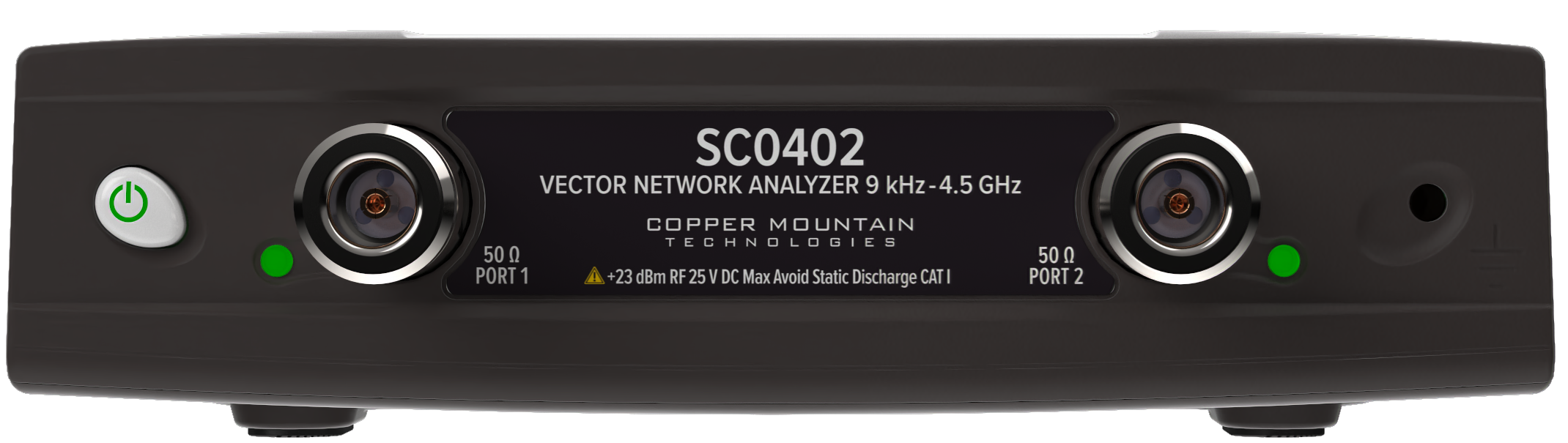

Front SC0402

SC0402 Front Panel

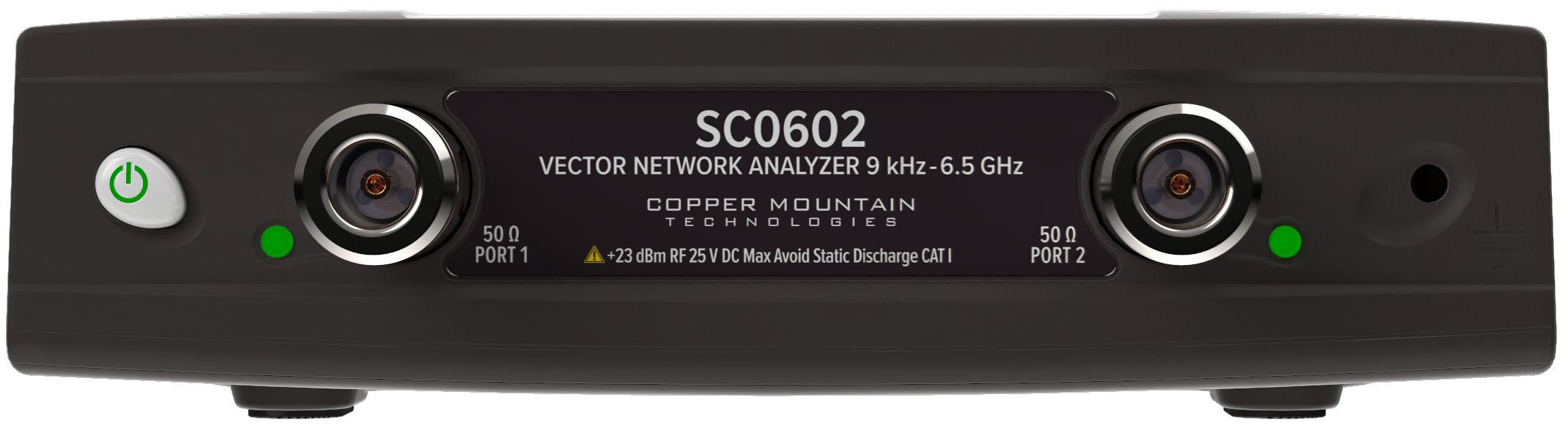

Front SC0602

SC0602 Front Panel

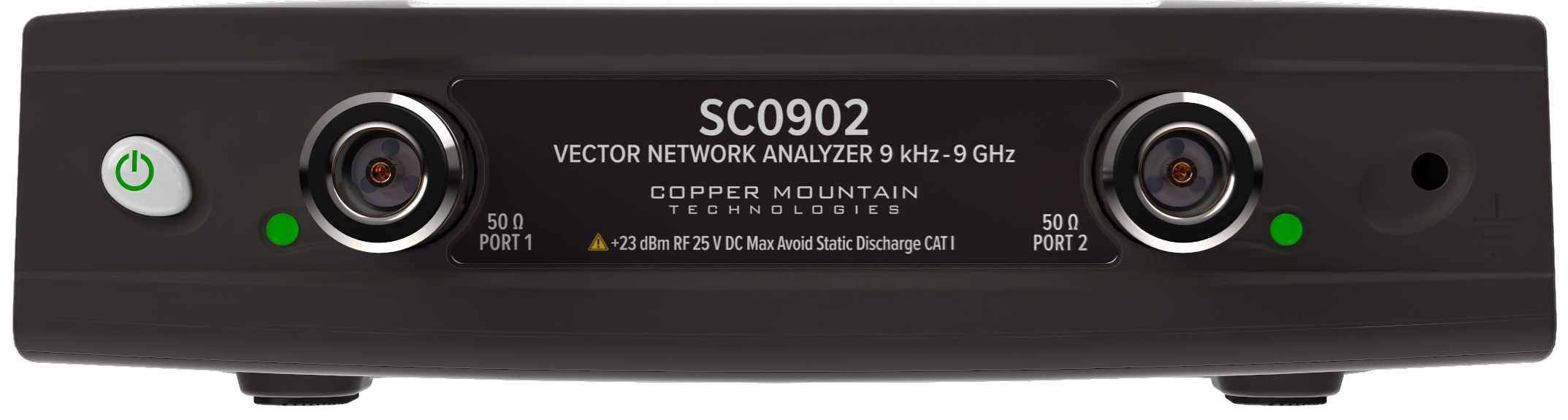

Front SC0902

SC0902 Front Panel

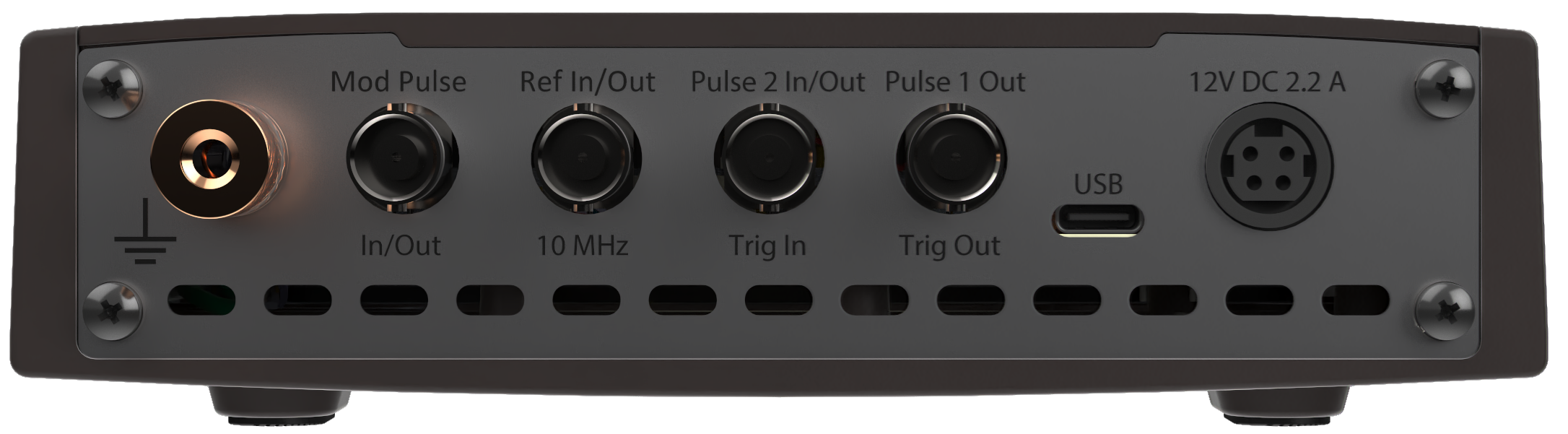

sc0x02 rear

SC0402/SC0602/SC0902 Rear Panel

Parts of front panel

Power Button

SC Power front

Switches the Analyzer ON and OFF.

The Analyzer can be turned ON/OFF at any time. The VNA loads its operating firmware from the PC each time upon powering up. The process will take approximately 10 seconds, after which the Analyzer will be ready for operation.

note	The USB driver will be installed onto the PC when the Analyzer is turned ON for the first time. The driver installation procedure is described in Software Installation. Some PCs may require re-installation of the driver in case of change of the USB port.

Test Ports

SC Front Port 1

Test Port 1 and 2 are intended for DUT connection.

Each test port has an LED indicator. A test port can be used either as a source of the stimulus signal or as a receiver of the response signal from the DUT. The stimulus signal can only appear on the only one port at a time.

Connecting the DUT to only one test port on the Analyzer allows the measurement of reflection parameters (e.g. S11 or S22) of the DUT.

Connecting the DUT to all test ports of the Analyzer allows for the measurement of the full S-parameter matrix of the DUT.

note	The LED indicator identifies the test port which is operating as a signal source.

Caution

Do not exceed the maximum allowed power of the input RF signal (or maximum DC voltage) indicated on the front panel. This may lead to damage of the Analyzer.

Ground Terminal

SC front ground

Use the terminal for grounding.

To avoid damage from electric discharge, connect the ground terminal on the body of the Analyzer to a reliable earth ground shared with the DUT in the test environment.

Parts of rear panel
