SCPI Command
DISPlay:SPLit <numeric>
DISPlay:SPLit?
Description
Sets or reads out the number of channels and channel layout on the screen. The channel layouts on the screen is shown below. |
|---|
command/query |

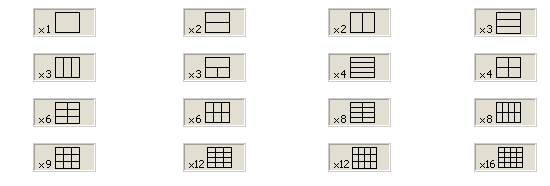

Channel window layout on the screen
Parameter
<numeric> the code of the channel window layout from 1 to 16.
note |
The layout code does not correspond to the number of channels. |
Query Response
<numeric>
Preset Value
1
Equivalent Softkeys
Display > Allocate channels
Equivalent COM Command
SCPI.DISPlay.SPLit
Syntax
Value = app.SCPI.DISPlay.SPLit
app.SCPI.DISPlay.SPLit = 2
Type
Long (read/write)
