The trace statistics feature allows to determine and view trace parameters, such as mean, standard deviation, and peak-to-peak.
The range of trace statistics can be defined by two markers.

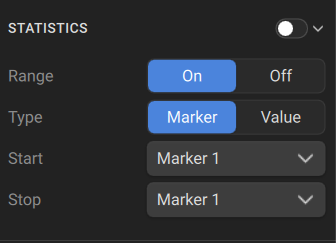

Math Statistics When On
Trace Statistics parameter
Symbol |
Definition |
Formula |
|---|---|---|
mean |
Arithmetic mean |
|
s.dev |
Standard deviation |
|
p-p |
Peak-to-Peak: difference between the maximum and minimum values |
Max – Min |
|
To enable/disable trace statistics function: Math > Statistics And use the toggle to turn it ON/OFF. |
|
To enable/disable trace statistics range: Math > Statistics > Range [ON|OFF] |
|
To set the start/stop markers of the statistics range: Math > Statistics > Start Math > Statistics > Stop |
|
|
