Minimal system requirements |
x86 compatible PC running WINDOWS or LINUX WINDOWS 107 or higher LINUX Ubuntu 24.04 or higher 8 GB RAM Minimum USB 2.0 High Speed |
Windows installation procedure
Find the Analyzer software installer file cmtvna-setup-X.X.X.exe in the shipped flash-drive or download it from www.coppermountaintech.com. Where X.X.X stands for version number.
Run the cmtvna-setup-X.X.X.exe installer file. Follow the instructions of the installation wizard.

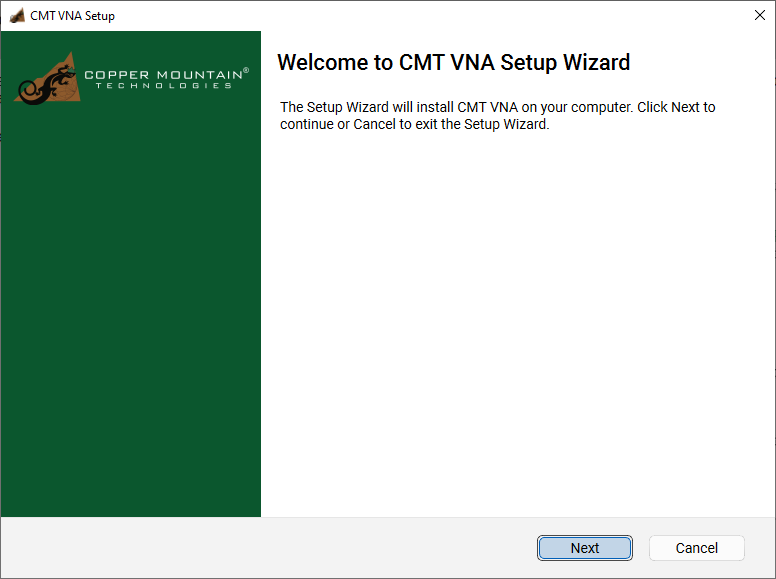

Installation wizard
Linux installation procedure
1.Download the analyzer software file cmtvna-linux-aarch64.tar.gz or cmtvna-linux-x86_64.tar.gz from www.coppermountaintech.com, where X.X.X is stands for version number.
2.Make it executable
chmod a+x cmtvna-linux-aarch64.targ.z |
3.Run
$ ./cmtvna-linux_X.X.X_x86_64.AppImage |
First time app will ask to enter root password for adding permissions for working with USB devices. You can do it by yourself by adding file /etc/udev/rules.d/cmt.rules containing:
SUBSYSTEM=="usb", ATTRS{idVendor}=="2226", MODE="0666" SUBSYSTEM=="usb_device", ATTRS{idVendor}=="2226", MODE="0666" |
Operating and Programming manual is the same as for the Windows application. Download it from www.coppermountaintech.com.
User’s data file location:
$ ~/.vna-portable/drive_c/users/<user>/Application Data/cmtvna |
Running More Than One Device on a PC in Linux
Up to 16 environment configurations can be used. It's allowed to store individual settings for different devices without copy application:
$ ./cmtvna_X.X.X_x86_64.AppImage -Conf=1 $ ./cmtvna_X.X.X_x86_64.AppImage -Conf=2 |
All application settings stored in Linux current user's folder:
$ ~/.vna-portable |
User's settings for all configurations stored inside it:
$ ~/.vna-portable/drive_c/users/<user>/Application Data/cmtvna $ ~/.vna-portable/drive_c/users/<user>/Application Data/cmtvna.1 $ ~/.vna-portable/drive_c/users/<user>/Application Data/cmtvna.2 |
