This section describes the print/save procedures for graph data. It can be found under Save/Recall > Report.
The print function is provided with the preview feature, which allows to view the image to be printed on the screen, and/or save it to a file.
The graphs can be printed using three different applications:
•MS Word (Windows only).
•Image Viewer for Windows (Windows only).
•Print Wizard of the Analyzer (Windows & Linux).
note |
The MS Word application must be installed on the Windows system. |
note |
The Print Wizard requires at least one printer to be installed in Windows. |
Print color can be selected before the image is transferred to the printing application:
•Color (no changes).
•Gray scale.
•Black & white.
The image can also be inverted before it is transferred to the printing application.
The current date and time can be added before the image is transferred to the printing application.
|
To open a print menu, use the |
|

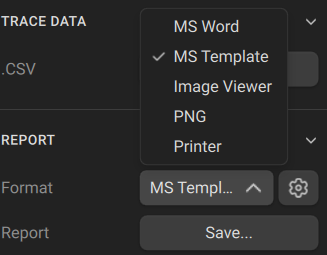

Then select the printing application use the dropdown by Format: •MS Word •MS Template •Image Viewer •PNG •Printer |
in Save/Recall > Report > Format
|

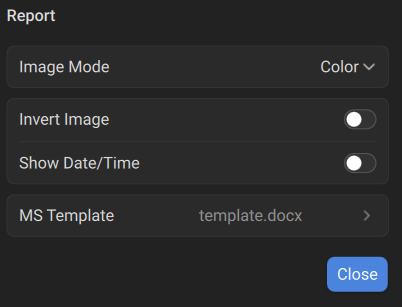

To set the print color, use Image Mode dropdown after clicking the Then select the required color, using one of the following softkeys: •Color •Gray •Black & White |
|
If necessary, invert the image by using the Invert Image toggle. |
|
If necessary, select printing of date and time by using the Show Date & Time toggle. |
|
|
