Planar 814/1 8 GHz Analyzer, Direct Receiver Access

Copper Mountain Technologies announced an End-of-Sale (EOS) for the Planar 814/1. This product is no longer available for purchase as of October 1st, 2019. We will provide service and repair for this instrument for a minimum of 3 years from the EOS date and based on parts availability afterwards.. The Cobalt C2209 2-Port 9 GHz analyzer is the recommended alternative for the Planar 814/1.

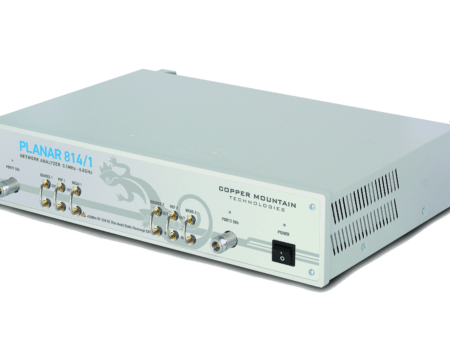

The Planar 814/1 is an 8 GHz, full-size analyzer providing lab grade performance in a 19-inch chassis, including both 2-port configuration and direct receiver access. All devices are ATE compatible, rack mountable, and easy to program and share between multiple users. This full-size analyzer is designed for operation with any Windows or Linux operating system on a PC, laptop, or tablet, or x86 board computer. The free, lightweight VNA application connects to the 814 with a standard USB cable, creating a future-proof solution that significantly enhances ease of use compared with conventional instruments.



This full-size vector network analyzer with dimensions of 12.8 x 16.3 x 3.8 (324 x 415 x 96 mm) and a weight of just 15.4 lbs (7 kg), can be used in the laboratory and in production testing, without requiring a lot of space. The VNA can be integrated into production test system via Manufacturing Test plug-in. VNAs and ACMs are delivered with factory calibration certificates containing no data. The add-on option for ISO17025/Z540-1 Accredited, Traceable Calibration Certificate and Uncertainties is available and needs to be specified at time of order.

  • - Frequency range: 100 kHz to 8 GHz
  • - Measured parameters: S11, S21, S12, S22
  • - Sweep types: Linear frequency, log frequency, segment, power sweep
  • - Dynamic range: 135 dB
  • - Measurement speed: 100 µs
  • - Impedance: 50 Ohm

Applications of the Planar 814/1 include RF component design and testing, on-wafer probing, field testing, insertion loss measurement, distance to fault measurement, antenna matching, quality control, material measurements, and many others.



View our Applications page to see how CMT VNAs are already extending the reach of engineers in many industries and applications.



If you want to consult with our engineers about your specific application, please Ask an Engineer.

The 814/1 provides a wide variety of analysis capabilities, including time-domain with gating and frequency offset modes, at no additional cost. Collection of metrology-grade S-parameter test results can be achieved manually or through automation in Python, MATLAB, Excel, C++, VB.NET, or LabVIEW.
