Discontinued: M5065 2-Port 6.5 GHz Analyzer
Copper Mountain Technologies has announced an End-of-Sale (EOS) for the M5065 2-Port VNA. Per our End-of-Life Policy, this product is no longer available for purchase as of April 9, 2025. We will provide service and repair for this instrument for a minimum of 3 years from the EOS date and based on parts availability afterwards. The replacement for this model is the V0602 2-Port 6.5 GHz VNA.

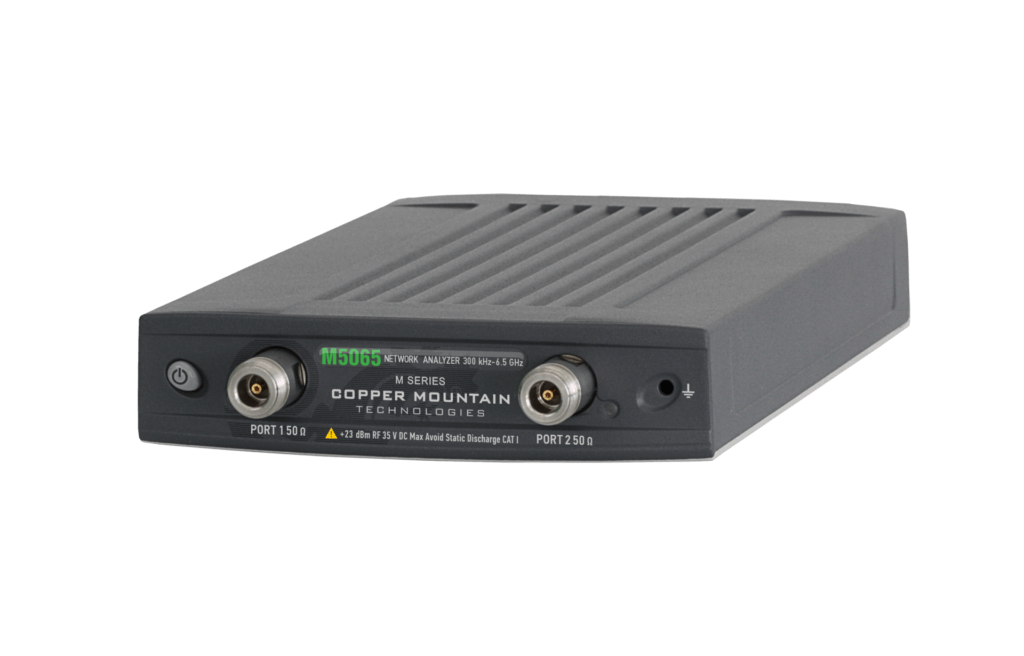

The M5065 is a 2-port, 6.5 GHz Vector Network Analyzer that delivers metrology-grade performance in a more economical package that excludes a number of advanced features:
- Vector Mixer Calibration
- TRL Calibration
- Frequency Offset
- Time Domain
- Gating
VNAs and ACMs are delivered with factory calibration certificates containing no data. The add-on option for ISO17025/Z540-1 Accredited, Traceable Calibration Certificate and Uncertainties is available and needs to be specified at time of order.
M5065 VNA includes an RF measurement module and S2 Windows or Linux operating system on a PC, laptop, tablet, or x86 board computer connecting to the measurement hardware via USB interface. S2 software can be installed on multiple computers, making it easy to share the use of the analyzer measurement module.
Applications of the M5065 include RF component design and testing, on-wafer probing, field testing, insertion loss measurement, antenna matching, quality control, material measurements, and many others.
View our Applications page to see how CMT VNAs are already extending the reach of engineers in many industries and applications.
If you want to consult with our engineers about your specific application, please Ask an Engineer.
